Duct Saddle

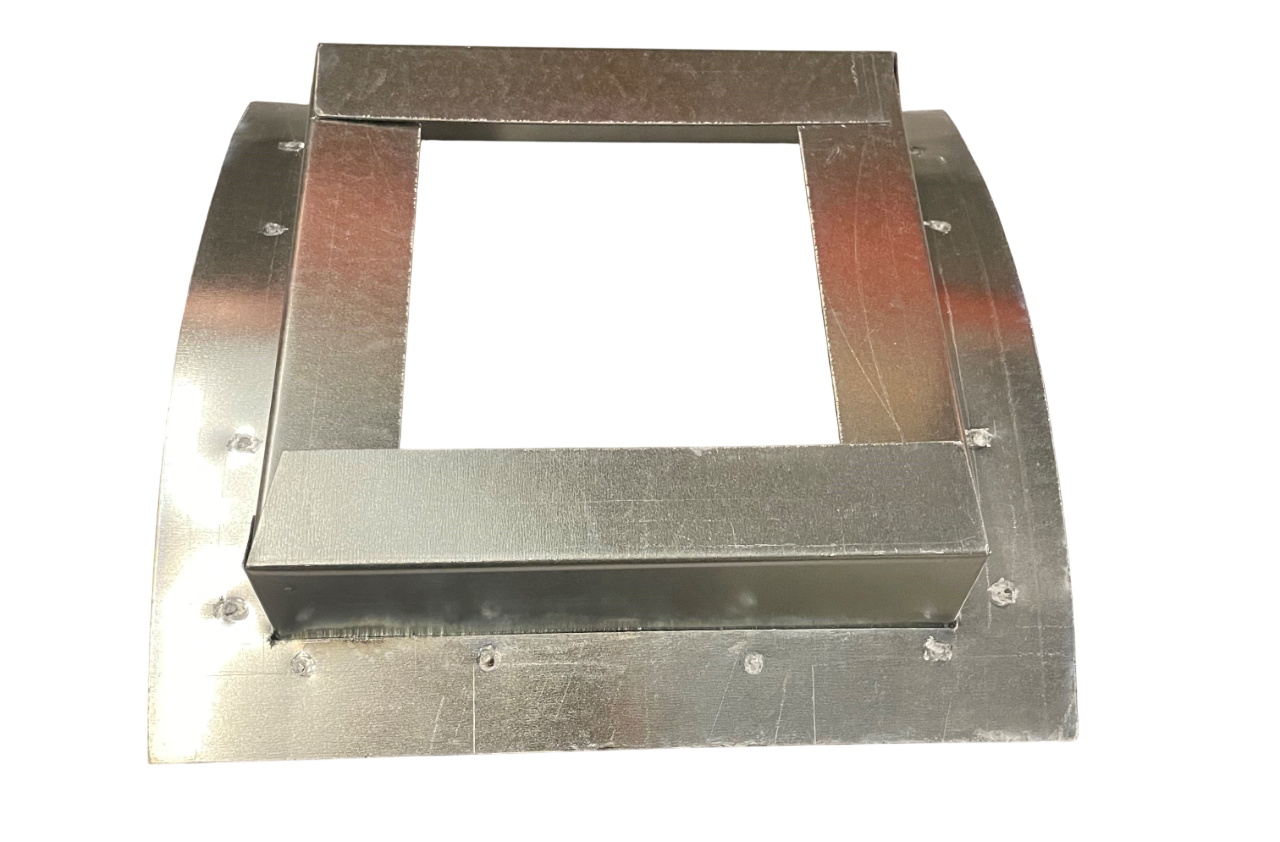

The HVAC Saddle Mount is an optional installation accessory for the MAK-Inline™ system when plenum space is limited or unavailable. In situations where the return or supply plenum does not provide sufficient flat surface area for standard mounting, the saddle allows secure integration directly onto round or oval ductwork.

Why It’s Needed

In many residential and light commercial systems, especially retrofit applications, the plenum may:

• Be too short for proper mounting clearance

• Contain internal obstructions

• Be constructed of materials that limit secure attachment

• Not exist in a traditional configuration

The saddle provides a stable mounting platform when direct plenum installation is not feasible.

Key Features

• Curved profile designed to conform to round ductwork
• Maintains proper MAK-Inline™ airflow orientation
• Allows correct dispersion into the airstream
• Supports sealed, code-conscious installation
• Ideal for retrofit and tight mechanical applications

When to Use

• Mechanical closets with minimal plenum depth

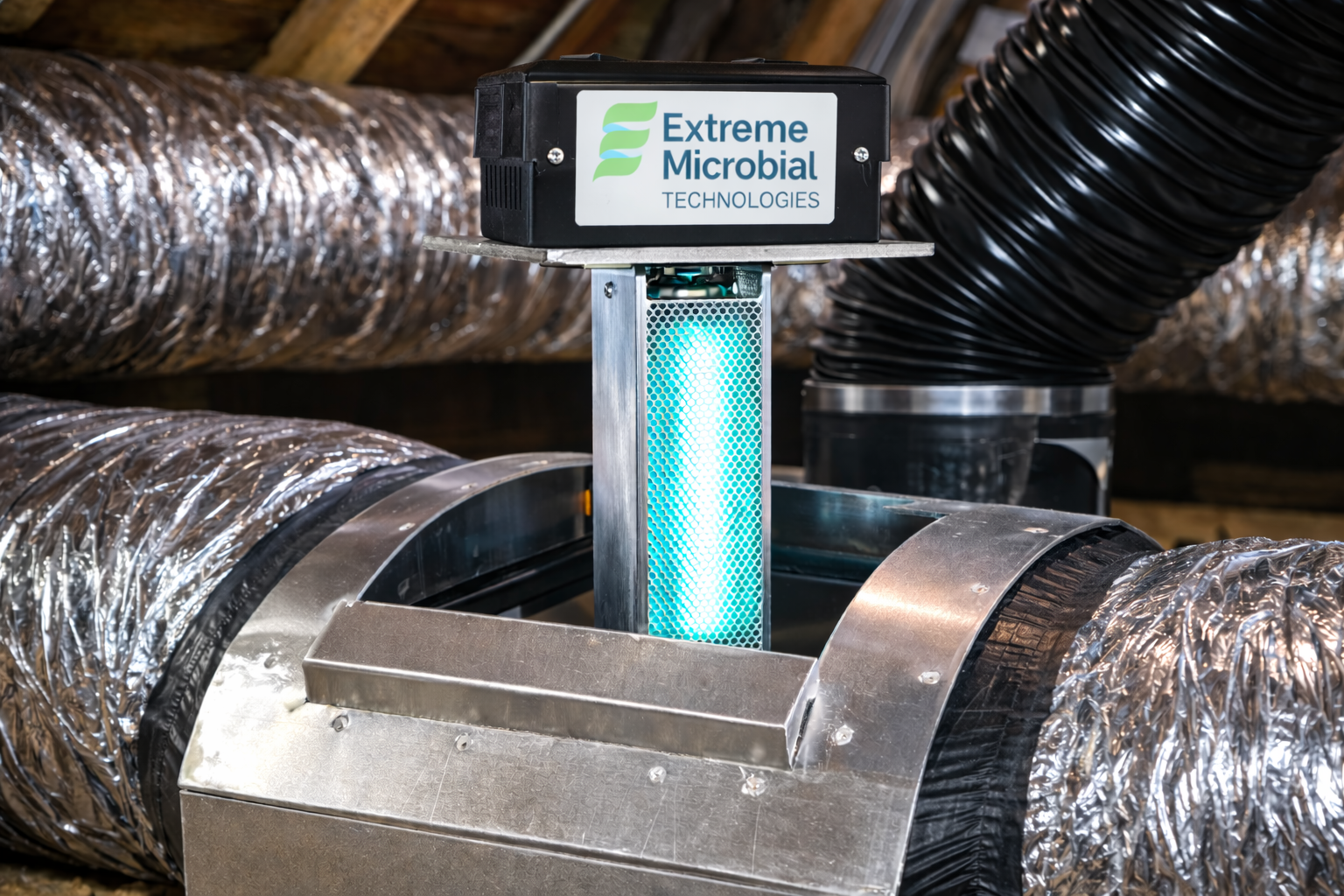

• Attic systems with compact configurations

• Commercial rooftop units with limited interior access

• Systems where installer access is restricted

Installation Considerations

Proper sealing with HVAC-rated mastic or approved foil tape is recommended to maintain system integrity and prevent air leakage. Installation should be performed by a qualified HVAC professional.
